Description

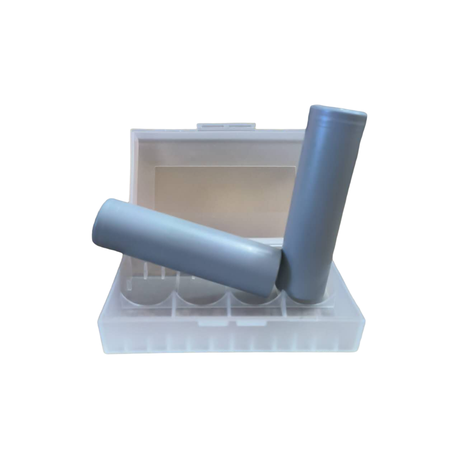

18650 is a lithium-ion cell intended for use in high current 18650 battery packs. It can power a wide range of devices including a vapes, power bank, drone, or motion detection. The battery is often used for consumer-devices that require a high discharge rating, and are often built into small 18650 battery packs.

Parameters:
– Flat top
– Nominal Discharge Capacity: 3500mAh Charge: 0.68A,4.20V, CCCV 68mA cut-off, Discharge: 0.68A,2.50V DC cut-off
– Min. Discharge Capacity: 3400mAh Charge: 0.68A,4.20V, CCCV 68mA cut-off, Discharge: 0.68A,2.50V DC cut-off.
– Typical Voltage: 3.65V
– Standard Charge: CCCV, 0.68A, 4.20 0.05V, 68mA cut-off
– Rapid Charge: CCCV, 1.5A, 4.20 0.05V, 68mA cut-off
– Standard Discharge: DC, 0.68A, 2.50V cut-off
– Max. Discharge: DC, 10.2A, 2.50V cut-off
– Charge/Discharge Voltage Range: 4.20~2.50V
– Cell Weight: 50.0g Max
– Cell Dimension: Height: 65.10 0.15mm Diameter:18.35 0.10mm
– Operation Temperature: Ambient Temperature: Charge: 0 to 45 C Discharge: -20 to 60 C
